MSR FlexSensors: Robust plug-in Sensors for more Flexibility

The easy solution for your measurement data acquisition

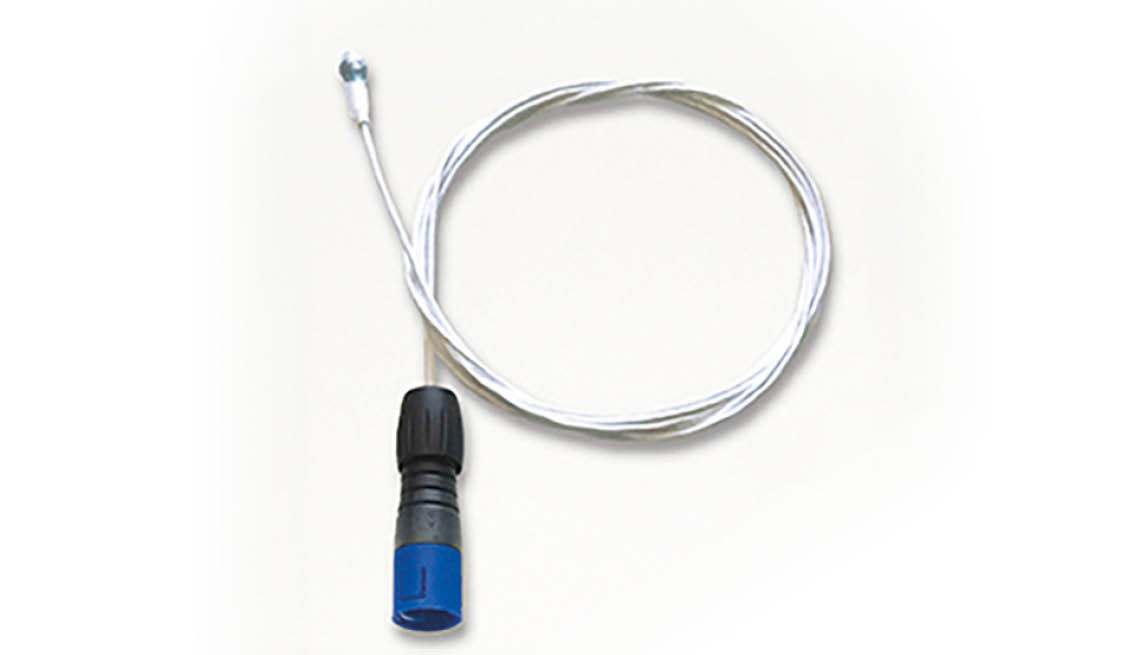

MSR FlexSensors are robust interchangeable plug-in sensors for recording measured variables such as temperature, humidity, fluid pressure, light and 3-axis acceleration (Fast Peak).

The FlexSensors offer you an efficient, cost-effective and flexible solution for a wide range of measurement applications. They are designed so that they can also be used in damp environments such as wet areas. The high level of impermeability (IP 67) ensures that the sensors function reliably even in demanding environments.

Various solutions are available with the MSR FlexSoftware for configuring the FlexSensors, visualising the measured values and processing the sensor information.

How would you like to use the MSR FlexSensors?

MSR FlexSensors, together with a USB FlexConnector, allow direct connection to a PC, notebook or single-board computer (e.g. Raspberry Pi). In addition to the direct connection, it is also possible to use FlexSensors with a compatible MSR data logger equipped with a FlexConnector plug connection. FlexSensors can also be connected to a measurement box.

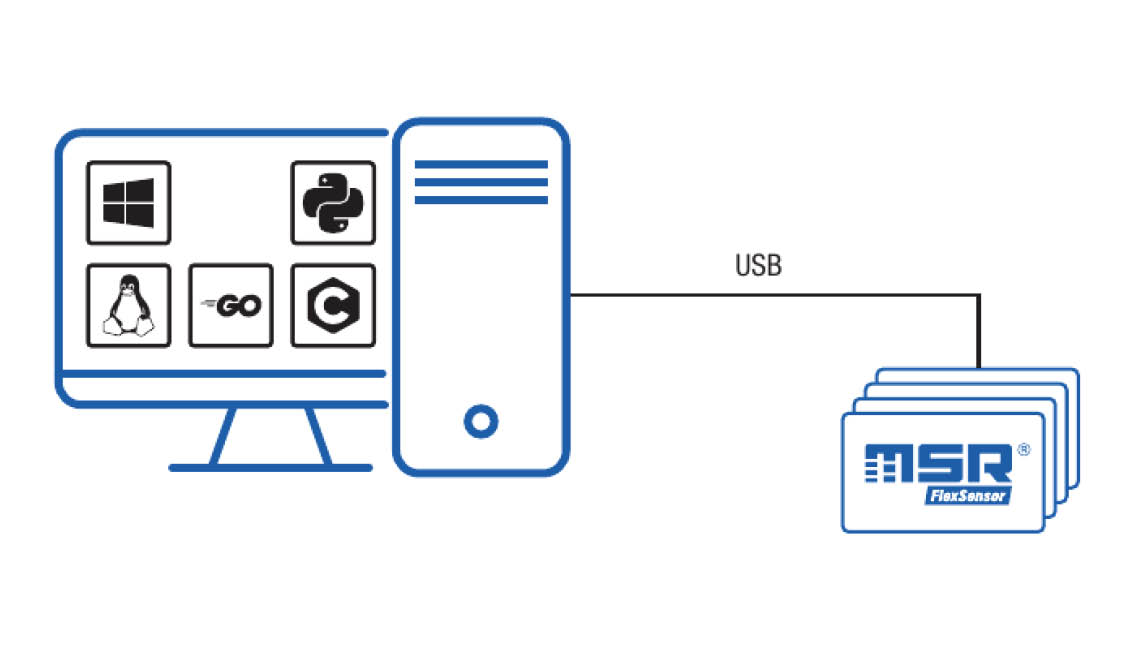

MSR FlexSensor for PC-based data acquisition

Record, save, visualise and forward measurement data from various FlexSensors simultaneously as required. Expandable at any time.

  • The robust FlexSensors are very quick and easy to exchange

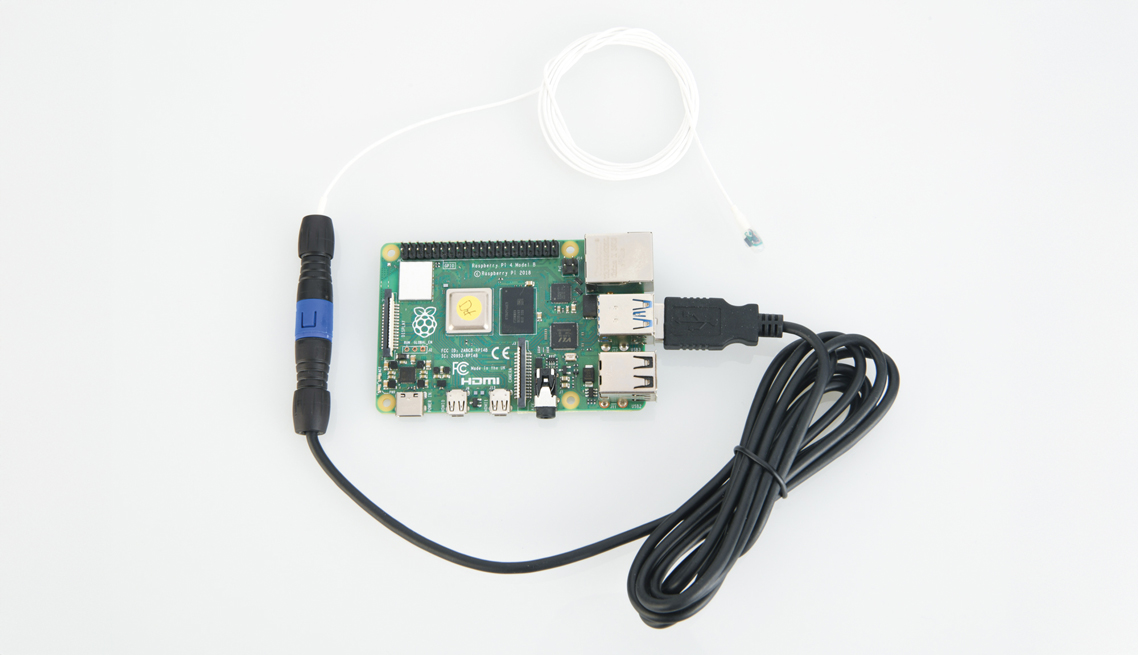

  • Can be used on the USB port of a PC, notebook or single-board computer (e.g. Raspberry Pi)
  • Several FlexSensors can be used simultaneously
  • 1 USB FlexConnector is required per FlexSensor; a commercially available USB hub can be used

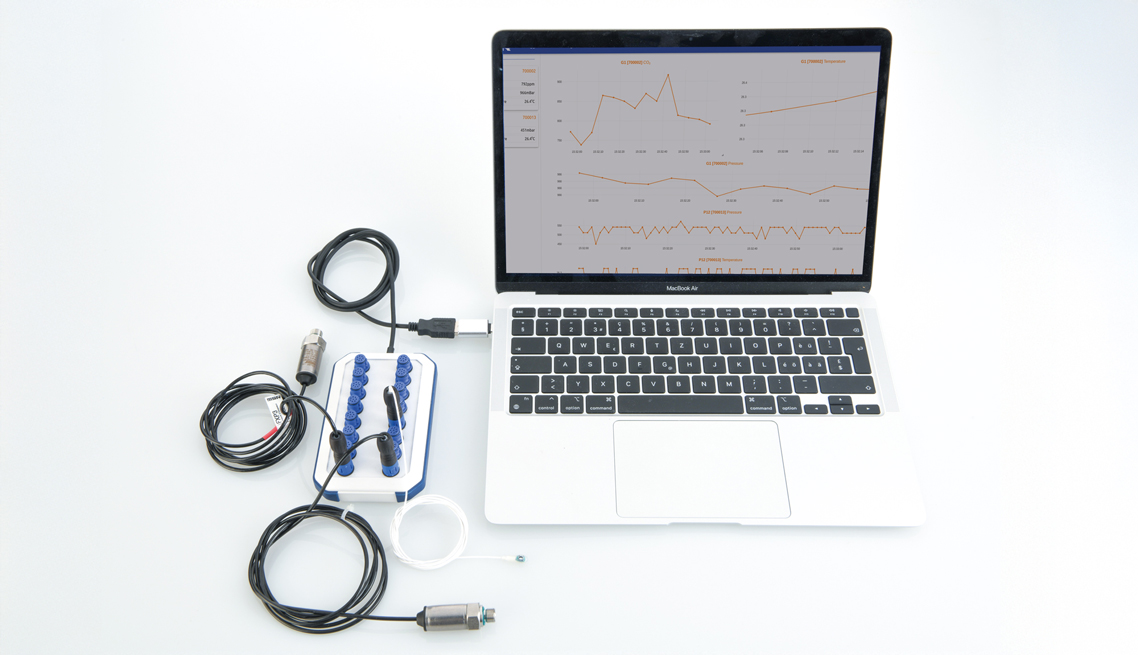

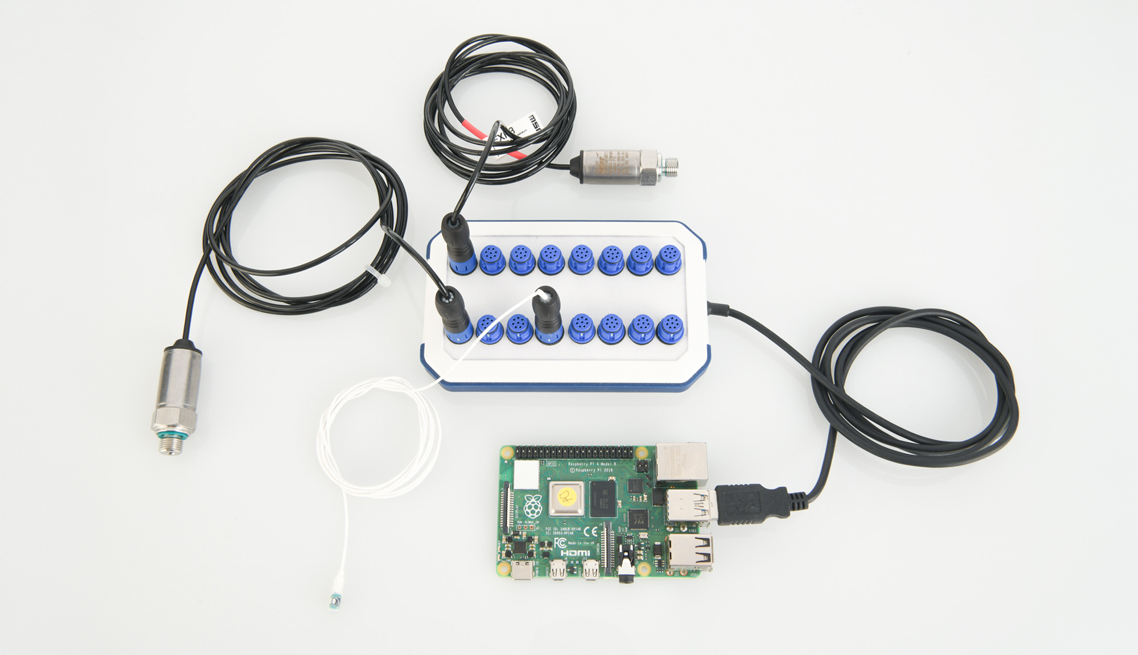

  • Alternatively, 4, 8, 16 FlexSensors can be connected directly using a USB FlexConnector hub

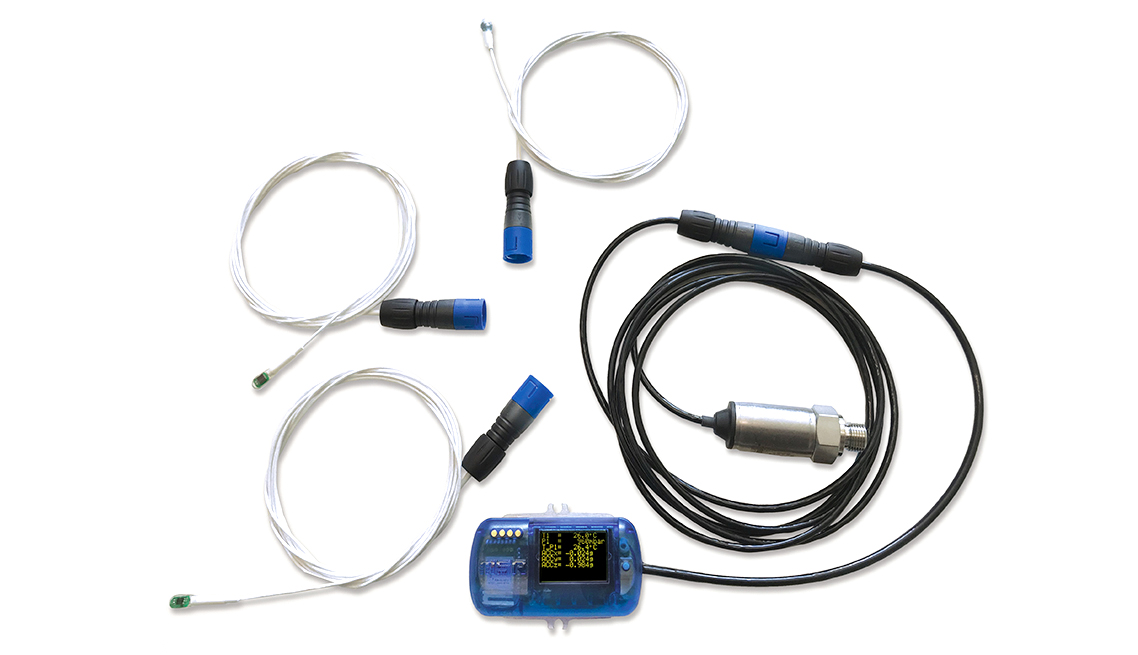

MSR FlexSensor for autonomous data acquisition with MSR145WD and MSR145W2D data loggers

With FlexSensors, your MSR data logger becomes an all-round high performance measuring instrument with countless sensor combination options. Additional FlexSensors can be ordered at any time and are automatically recognised by the data logger.

  • Compatible data loggers: MSR145WD (Bluetooth),  MSR145W2D (WiFi)
  • In order for the FlexSensor to be connected to the data logger, it must have a FlexConnector
  • 1 interchangeable FlexSensor can be connected to each FlexConnector
  • The FlexSensor can be combined with the data logger’s internal and external sensors

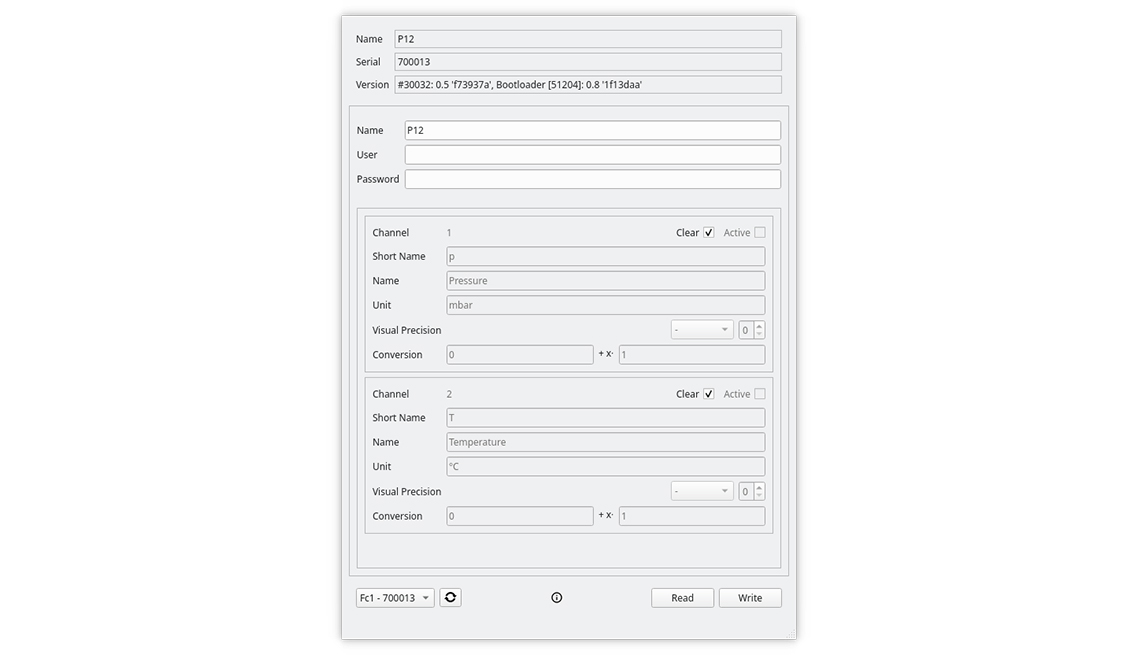

  • MSR FlexConfigurator software for configuring the FlexSensors (additional USB FlexConnector required)

Select the required MSR FlexSensors:

The range of MSR FlexSensors is being continuously expanded. Customised FlexSensors (air pressure, gas, distance, etc.) are available on request. The measurement/storage rate depends on the sensor and the end device.

Notes:

  • To connect the FlexSensor directly to the end device (PC, notebook, single-board computer), you need a USB FlexConnector
  • If you want to use the FlexSensor on the MSR145WD data logger or MSR145W2D data logger, it must be equipped with a FlexConnector
Measured parameters Technical data CHF (net)
Temperature Working range:
-40…+125 °C

Max. deviation:
±0.2 °C (-10…+50 °C)
±1 °C (-40…+125 °C)
FXT9/160

CHF 182.00buy online contact a reseller

Relative humidity
with integrated temperature
Working range:
0…100 % rel. humidity
-40…+125 °C

Max. deviation:
±1.8 % rel. humidity (10…85 %, 0…+40 °C)
±4 % rel. humidity (85…95 %, 0…+40 °C)
FXH3/160

CHF 182.00buy online contact a reseller

Fluid pressure
with integrated temperature
Material in media contact:

  • Stainless Steel AISI 316L
    (DIN 1.4404 / 1.4435)
  • O-rings: Viton® 70° Shore
Working range:
-1000…3000 mbar relative
-20…+85 °C

Max. deviation:
±30 mbar (1% FS)
FXP9/160

CHF 282.00buy online contact a reseller

Working range:
0…3000 mbar absolute
-20…+85 °C

Max. deviation:
±30 mbar (1% FS)
FXP3/160

CHF 282.00buy online contact a reseller

Working range:
0…30 bar absolute
-20…+85 °C

Max. deviation:
±0.3 bar (1% FS)
FXP4/160

CHF 282.00buy online contact a reseller

Working range:
0…400 bar absolute
-20…+85 °C

Max. deviation:
±4 mbar (1% FS)
FXP8/160

CHF 282.00buy online contact a reseller

Working range:
0…1000 bar absolute
-20…+85 °C

Max. deviation:
±10 bar (1% FS)
FXP12/160

CHF 282.00buy online contact a reseller

3-axis-acceleration
with Fast Peak (800 Hz)
Working range:
±15 g
-20…+65 °C

Max. deviation:
±0.15 g (0…5 g, +25 °C)
±0.25 g (5…10 g, +25 °C)
±0.45 g (10…15 g, +25 °C)
FXA4/160

CHF 282.00buy online contact a reseller

Light Working range:
0…83’000 lx


Max. sensitivity at 550 nm
FXL3/160

CHF 282.00buy online contact a reseller

Analogue inputs

Resolution: 12 bit



4 analogue inputs with freely selectable input configuration: 0…20 mA; 4…20 mA, 0…3.0V; 0…5.0V; 0….10.0V; 0…12.0V; 0…24.0V; 0…36.0V; 0…48.0V Exxxx/160

CHF 282.00buy online contact a reseller

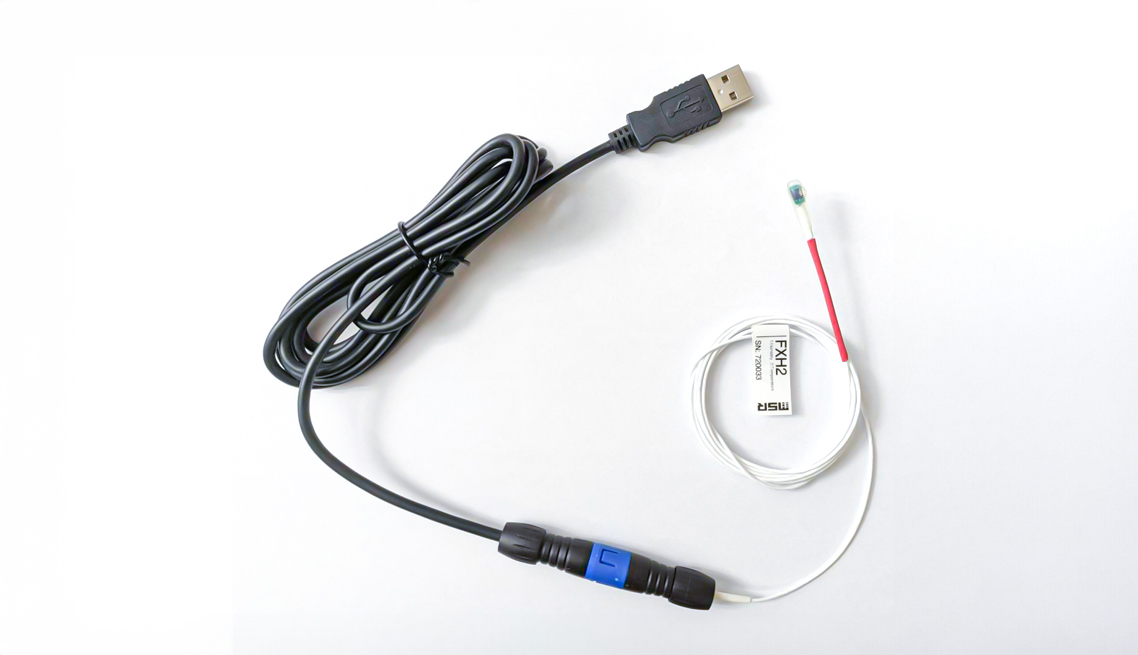

Do you require a USB FlexConnector for your MSR FlexSensors?

The FlexSensors can be quickly and easily connected to the USB port of a PC, notebook or single-board computer (e.g. Raspberry Pi) using the USB FlexConnector.

Product Technical data CHF (net)

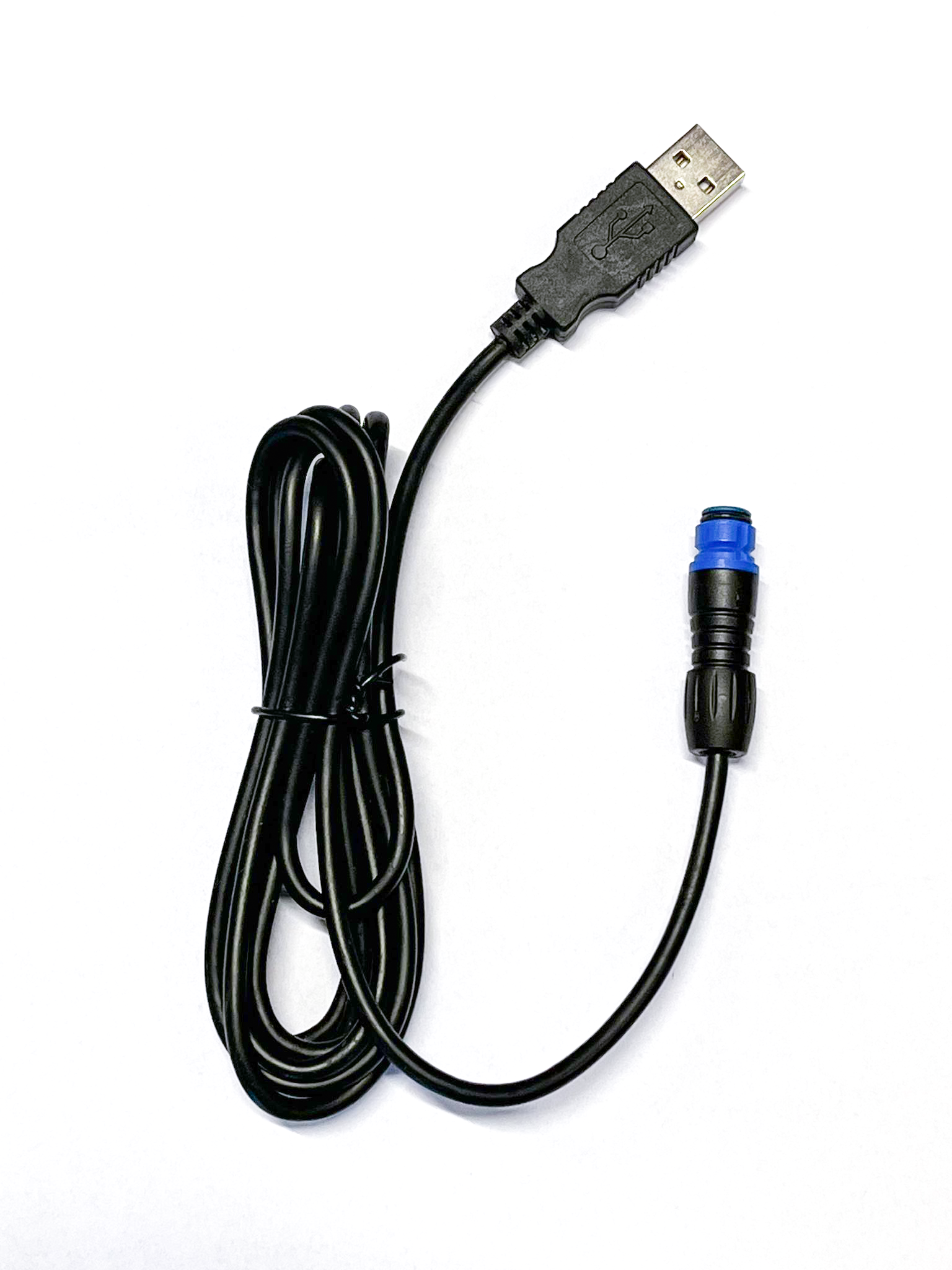

USB FlexConnector for MSR FlexSensor Cable length: 1.75 m
USB-Type: A
N10040

CHF 56.70buy online contact a reseller

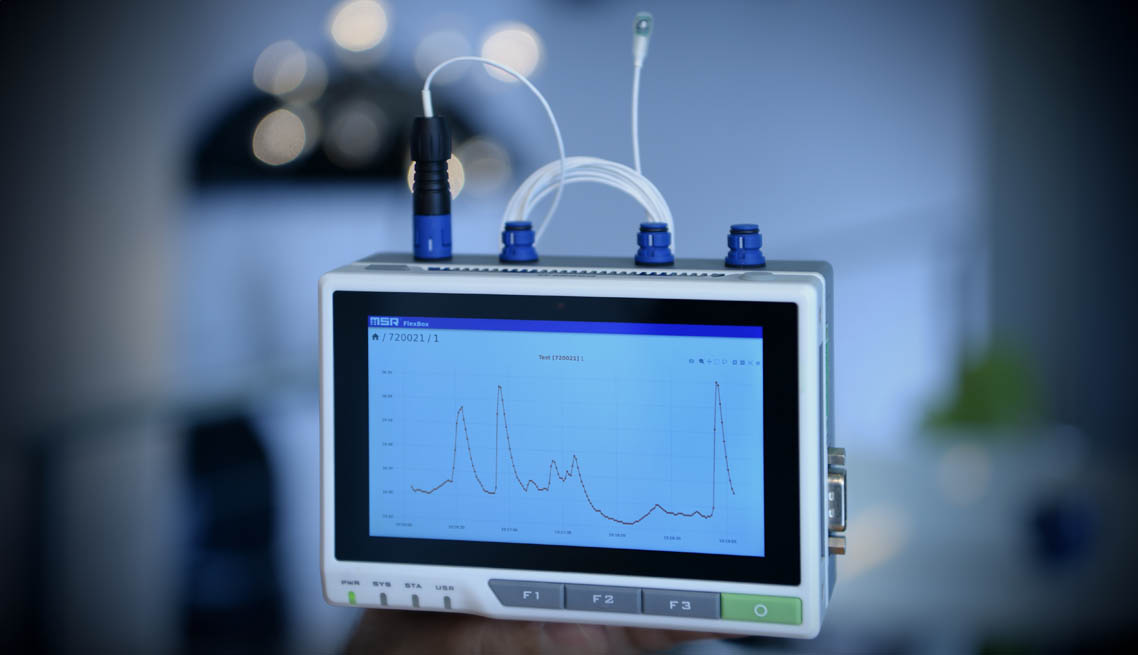

MSR FlexSensor application with measurement box

If you want to connect several FlexSensors to a measurement box box, this is also possible. Please contact us for further information.
