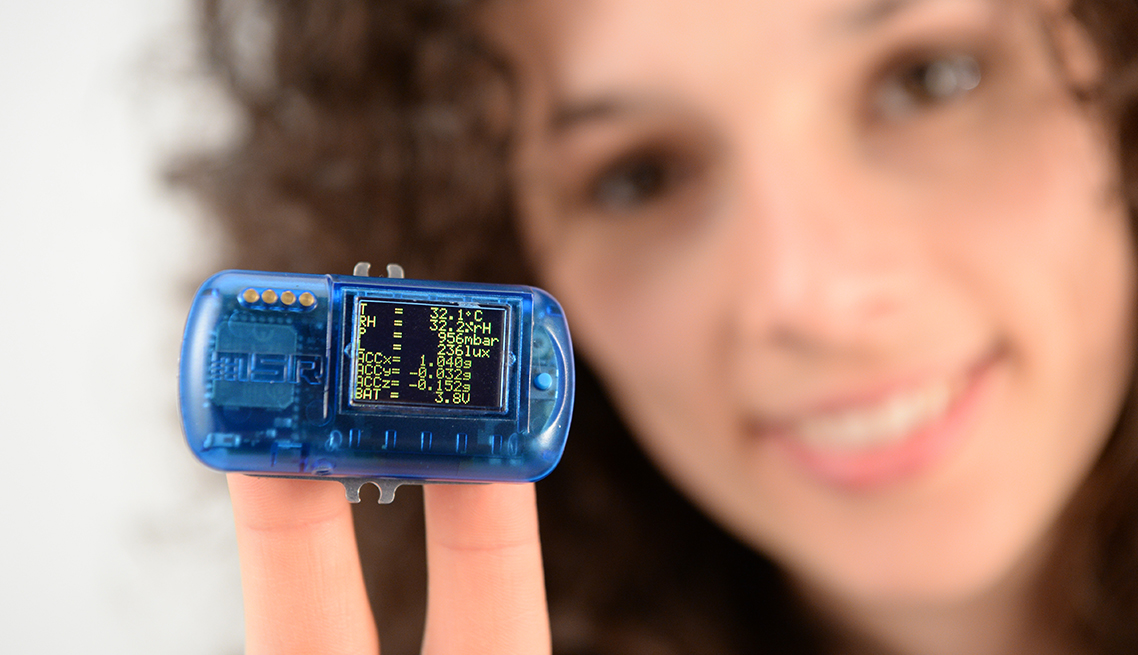

WiFi datalogger MSR147W2D for temperature and humidity
WiFi datalogger MSR147W2D for temperature and humidity.
WiFi datalogger MSR147W2D for temperature and humidityThe MSR147W2D WiFi data logger comes with up to 5 connections for plug-in temperature and humidity sensors.The wireless data logger has a color display for showing measurement data and graphics.Measurement data can be stored and managed in the MSR LocalCloud or in the MSR SmartCloud.

MSR147W2D: Wireless Data Logger (WiFi) with Plug-in Temperature and Humidity Sensors

5 connections for plug-in humidity & temperature sensors · WiFi (WLAN) ·  over 1 million measured values · MSR Local Cloud, MSR SmartCloud

The easy to use MSR147W2D wireless data logger is ideal for remote monitoring of temperature and humidity. This can be of great benefit when testing the material and construction properties of functional clothing, for example. The temperature and humidity sensors, which are available in different cable lengths, can be easily attached to the body of a test person and the physiological parameters determined, such as skin temperature and moisture level can be conveniently accessed online via WiFi/WLAN.

Plug-in, pre-calibrated temperature and humidity sensors

The sensors supplied by MSR Electronics GmbH can be inserted and removed individually. Due to the automatic configuration feature, the data logger instantly recognises when a sensor is inserted. The calibration data is stored in the corresponding sensor. In addition to the plug-in temperature and humidity sensors, you can have your MSR147W2D equipped with an internal air pressure and/or acceleration sensor.

Integration in WLAN/WiFi network

No wiring costs and no time-consuming manual reading of measured values. Measured data can even be sent from places with difficult access. Integration either into an existing WiFi or via an access point, by means of mobile network access where required, into a separate wireless network.

Store and manage measurement data in the MSR LocalCloud or in the MSR SmartCloud

With the MSR147W2D, you have the option of using the MSR LocalCloud to store, manage and export the data either locally on your (company’s) own server or in the web-based cloud solution MSR SmartCloud.

Configure your MSR147W2D here
...or buy it in the webshop

Configure your own custom MSR147W2D variant here!

With a few clicks you are able to select and send us your order of your desired MSR147W2D.

  1. Select the housing and the corresponding battery.
  2. Select the sensors.
  3. Do you require a router to send the measurement data via WiFi?
  4. The use of MSR SmartCloud.
  5. Place your order.

1. Select the housing and the corresponding battery.

Housing Type and battery Picture Size & weight Sheat material Item no.
Standard
IP 60		 Design housing
with 230 mAh battery,
OLED display and WiFi		 Data Logger MSR147W2D 35 x 17 x 57 mm (W x H x L)
approx. 27 g		 PC, not
encapsulated		 147W2DB25
Waterproof
IP 67		 Design housing
with 230 mAh battery,
OLED display and WiFi		 Data Logger MSR147W2D 35 x 17 x 57 mm (W x H x L)
approx. 36 g		 PC,
encapsulated		 147W2DB26

2. Select the sensors.

Sensors measuring air pressure and 3-axis acceleration (static) are available as internal sensors. Five connections (IP 60) for plug-in, external, pre-calibrated humidity and temperature sensors in cable lengths of 0.20 m, 1.00 m or 1.60 m and a cable diameter of 2.2 mm (black cable, up to +75 °C). A cable diameter of 1.2 mm (white cable, up to +200 °C) is available on request.

Measured parameters /
Storage rate		 Working range /
Accuracy		 Internal
sensor		 External sensor (according to cable length)
0.20 m 1.00 m 1.60 m
Temperature

1/s to every 12 h		 -40...+125 °C
±0.1 °C (-25...+55 °C)
±0.3 °C (-40...+125 °C)		 only available
externally 		Art. FT9.3/020

 Art. FT9.3/100

 Art. FT9.3/160
Humidity
with integrated
temperature

1/s to every 12 h		 0...100 % rel. humidity
-40...+125 °C
±2 % rel. humidity
(10...80 %, +25 °C)
±3 % rel. Feuchte
(80...100 %, +25 °C)
 only available
externally 		Art. FH3.3/020

 Art. FH3.3/100

 Art. FH3.3/160
Air pressure absolute,
with integrated
temperature

1/s to every 12 h		 10...2000 mbar abs.
-20...+65 °C
±2 mbar
(750...1100 mbar abs.,
+25 °C)		 Art. P5
 only available
internally 		only available
internally 		only available
internally
3-axis-acceleration
(static)

1/s to every 12 h		 ±15 g
-20...+65 °C
±0.15 g (+25 °C)		 Art. A
 only available
internally 		only available
internally 		only available
internally

3. Do you require a router to send the measurement data via WiFi?

A router will be needed if your MSR147W2D device is incorporated into a separate WiFi network or if measurement data is to be sent to MSR SmartCloud via a mobile network.

Device/Service Description Item no.
WiFi router FRITZ!Box 6820 LTE WLAN access point (access to mobile network) N10130
SIM card
(EU version)
  • 1 SIM card
  • Sending data via mobile network to MSR SmartCloud for the first 12 months.
 N10111
Extension
(EU version)		 Sending data via mobile network to MSR SmartCloud for subsequent 12 month period. N10113

4. The use of MSR SmartCloud.

The cloud solution managed by MSR Electronics GmbH records data measured by MSR data loggers in a database. Through online access to MSR SmartCloud you are able to gain insight into your measured data, manage it, and create alert messages. When ordering the MSR147W2D data logger you will automatically receive the access code to MSR SmartCloud.

Service Description
MSR SmartCloud Free access to MSR SmartCloud when you purchase the MSR147W2D data logger.
Data capacity up to 100,000 measurements. Data memory up to three months.

5. Contact us for prices and delivery terms!

Make a price enquiry by telephone, fax or Email

The following codes denote the type of datalogger and sensors you have selected. When making price enquiries by telephone, fax or Email, please have the codes ready.

Product codes:

Making price enquiries using the contact form

Please provide us with your contact details on the following online form and send your enquiry with a click of your mouse – we will be pleased to send you a no-obligation quotation!

Title*
First name
Surname*
Company
Number, street
Zip code/postcode
City
Country*
Phone
Fax
Email*

Notes (please enter the number of units you require here):

I agree to the use of my personal data pursuant to the Privacy Policy of MSR Electronics GmbH.*


*Mandatory fields

Product features wireless data logger MSR147W2D

General functions

  • Wireless data logger (WiFi, WLAN) with 5 connections (IP60) for pluggable, pre-calibrated humidity and/or temperature sensors
  • Internal air pressure and/or 3-axis accelerometer ±15 g optionally available
  • More than 1 million measured values storage capacity in the internal memory
  • Free MSR PC software: MSR Setup, Reader, Viewer and Online software

WiFi (WLAN) functions

  • Integration either into an existing WiFi or via an access point, by means of mobile network access where required, into a separate wireless network
  • WiFi range can be extended with a commercially available repeater
  • Data storage is guaranteed even if the transmitter fails
  • Alarm message if limit value is exceeded
  • MSR SmartCloud: retrieve, analyse and export measured data online at any time; alarm message if limit value is exceeded
  • Free MSR WLAN software for graphical visualization of the measured values transmitted over WiFi (WLAN)



Technical data of the sensors, housings and batteries

Technical details can be found on the Configurator tab.



General technical data of the MSR147W2D WiFi data logger

Memory capacity: over 1’000’000 measured values
Key button: With the button you can activate and deactivate the display, the WiFi-module and the data recording.
LED:



 Blue: Record indicator
Red:  Alarm indicator
Yellos: Battery charge indicator
Power supply:  Lithium-polymer battery, rechargeable via the USB connection.
OLED display: High-contrast, brilliant OLED (organic light-emitting diode) colour display to show data and graphical charts, resolution 96 x 64 pixels.
Interface: USB, WiFi (WLAN)
PC software:  MSR Setup, Reader, Viewer and Online software, MSR WLAN LocalViewer, System requirements: Windows 7 or higher, USB port
Operating conditions:
Temperature: -20…+65 °C
Storage conditions:
Temperature:
Humidity:		 +5 °C…+45 °C  (ideal storage conditions for the battery)
10…95 %  relative humidity, non-condensing
Standards: The MSR147W2D complies with EU-Directives RoHS/WEEE.

Software

Our software is scanned for viruses with Microsoft Defender.



Instruction manuals

Datasheets

Certificate



FAQ – frequently asked questions about MSR data loggers

MSR147W2D Wireless (WiFi) Data Logger for measuring the physiological properties of textiles

Functional clothing is subjected to extensive testing, both in the laboratory and in the field, before entering the market. With the new MSR147W2D wireless data logger, MSR Electronics wants to make the complex measuring and monitoring of physiological parameters such as skin temperature and moisture level easier, and make it accessible to a wide user field.
